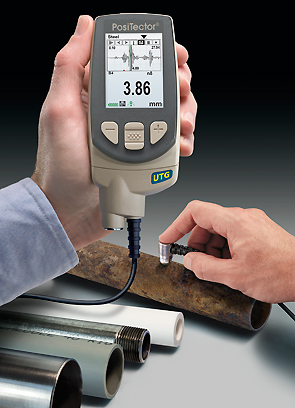

DeFelsko Releases PosiTector UTG Ultrasonic Wall Thickness Guage

The PosiTector UTG measures the wall thickness of materials such as steel,
plastic and more using ultrasonic technology. Ideal for measuring the effects of
corrosion or erosion on tanks, pipes or any structure where access is limited to
one side. Multiple echo (UTG M) Thru-Paint models measure the metal
thickness of a painted structure without having to remove the coating.

Simple

Large, easy-to-read, graphics LCD
Enhanced one-handed menu navigation
Pre-programmed velocities - simply select from a list of common materials or
enter your own with ease
Smart Couple™ - eliminates inadvertent decoupling- ideal for analyzing large
areas using multiple passes
Flashing display - ideal for noisy environment
RESET feature instantly restores factory settings

Durable

Solvent, acid, oil, water and dust resistant – weatherproof
Impact resistant lens
Wear-resistant probe tip
Shock-absorbing, protective rubber holster with belt clip
Two (2) year warranty on body and probe

Accurate

Precision ultrasonic transducers provide fast, accurate readings
Certificate of Calibration (Long Form) showing traceability to NIST included
Conforms to national and international standards including
ASTM E797
Built-in temperature compensation ensures measurement accuracy

Versatile

Gage body accepts all PosiTector UTG (wall thickness), SPG (surface profile),
DPM (environmental) and 6000 (coating thickness) probes View Video
Hi Contrast backlit display for bright or dark environments
Single or two point adjustment
Inch/mm switchable
Selectable display languages
Flip display enables right-side-up viewing
Uses alkaline or rechargeable batteries (built-in charger)

Powerful

Min Scan - measurement rate of up to 20 readings per second with onscreen
min and max for quick inspection over a large area
Statistics - continually displays/updates average, standard deviation, min/max
thickness and number of thickness readings
HiLo alarm audibly and visibly alerts when measurements exceed user-specified
limits
Every stored measurement is date and time stamped
USB port for fast, simple connection to a PC and to supply continuous power.
USB cable included
USB mass storage - stored readings and graphs can be accessed using universal
PC/ Mac web browsers or file explorers. No software required
PosiTector.net account - a free web-based application offering secure storage
of thickness readings
PosiSoft Software Compatible - Continue using the familiar legacy software you
have used for years. Available as a free download.
Screen Capture -record and save image into USB flash memory for record
keeping and review
Software updates via web keep your gage current
