In reality, much of the work we do in inspection is a bit repetitive. Similar
inspections have to be done every year or so and similar NDT techniques are
used from one year to the next. The oil and gas industry is (rightly) cautious
and wary of change. It takes time to approve new systems and methodologies.

Every now and again however a challenge comes along that calls for a novel
approach and demands some innovation. Late in 2011 the management team at
the INEOS Hydrocarbons Asset in Grangemouth, Scotland, approached Applus
RTD about a particularly ‘interesting’ inspection project.

The Grangemouth refinery dates from 1927 and is the second oldest in the UK.
It is also one of the largest, with a "nameplate" capacity to process over
200,000 barrels of oil a day. Applus RTD have provided inspection and NDT
services to the refinery for many years but in November 2011 they presented us
with a new sort of challenge concerning the inspection of the interior of large
diameter spherical pressure vessels used for the storage of propylene (see
figure 1).

This vessel is just over 22m in diameter and has the capacity to store over 5.7
million litres of propylene. Propylene (or propene) is an important feedstock in
the petrochemical industry. It is the raw material for a wide variety of products
including the plastic polypropylene, which accounts for nearly two thirds of its
usage. Due to its chemical properties, producers take great care to ensure the
integrity of the vessels storing it. INEOS is required to undertake a statutory ten
year inspection on the vessel to check for vessel integrity, including inspection
of the welds. The vessel is coated with a thick layer of intumescent fire
protection (firecrete). The only practical way to inspect the welds is from the
inside. This means the vessel has to be taken out of commission and,
traditionally, the inside would then have been scaffolded out in its entirety.

Now by any measures this vessel is huge. It is as almost the same size as the
dome of St Paul’s Cathedral in London. Scaffolding the interior would take
months and involve the use of a vast amount of labour and materials. And if
that wasn’t enough, there is an additional dimension to add to the challenge in
that every man, every pole and every plank has to go and out through a hatch
that is only 600mm in diameter. You can just spot the tiny hatch at the bottom
of figure 1.

When the last inspection was carried out some ten years previously (prior to
INEOS taking ownership of the refinery) it was reported that the vessel was out
of action for over a year. And this was the real challenge presented to Applus
RTD: to reduce significantly the time out of service and complete the works to
the highest standards and deliver excellence in Health and Safety.

Given the complexities of the task, the question was what could Applus RTD do
to meet INEOS’ requirements whilst ensuring a full inspection was done safely
and rigorously?

Applus RTD in the UK have been pioneers in the use of rope access for getting
to awkward places but this was different. Abseiling on ropes works well on
vertical surfaces but how could ropes be used to reach the concave surface
forming the top half of the sphere? After discussions between Applus RTD and
INEOS it was proposed to use a simple hexagonal frame such as is shown in
figure 2. (This shows the prototype "hex" constructed in the Applus RTD rope
training school in Falkirk, it is roughly 1/3 of actual size required but still big
enough to fill the rope school)

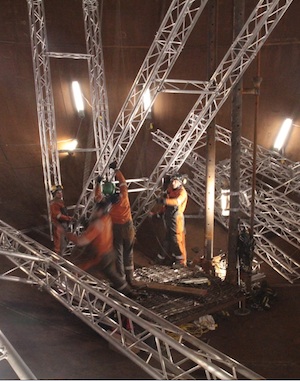

The "hex" was assembled from aluminium sections (rather like a grown-up’s
Meccano set) with each being passed through the small hatch. Once assembled
inside the sphere itself the hex was suspended from the top of the inside of the
sphere and rested on the floor. The addition of outriggers or platforms (see
figure 4) allowed access to the interior surface. As soon as one section of the
work was completed the whole hexagon could be raised a few inches using a
chain hoist and then rotated, just by the pressure of one’s hands on the frame.
As soon as the hex was in the correct new position it could be lowered again
and allowed to rest on the floor. This meant that every part of the sphere could
be reached by the team from the hex. Of course all operatives working on the
hex structure were using a fall arrest system, under the direct supervision of a
Level 3 rope access supervisor and adhering to the normal rope access safe
working practice protocols.

The whole hexagonal structure was assembled inside the sphere in just four
days and then the inspection work began in earnest. The Applus RTD crew
carried out weld inspections using magnetic particle inspection techniques and
using the advanced technique known as TOFD (Time of Flight Diffraction) as
pictured in figure 5. Further checks were made by careful visual inspection and
the use of conventional ultrasonic testing. Within 36 days the job was complete
and the whole "hex" had been dismantled and removed from the sphere. This
allowed INEOS to return the sphere to service in a much shorter time and
consequently made considerable savings.

The sphere inspection at the INEOS site using the HEX solution was successful
in every way and word has spread of our innovative approach. As a direct result
another petrochemical company in the same area asked to see what had been
done and with INEOS’ permission this was done. They were very impressed and
to cut a long story short, Applus RTD have already undertaken a full inspection
on one of their spheres and are working on a second. Then a third company
expressed interest and Applus is now preparing to conduct inspections on two
more spheres for that client. News is beginning to travel through the refining
and petrochemicals community that if you have a spherical vessel to inspect
then Applus RTD is the company to do it promptly, economically and above all
else safely.

Neil R Hannah 18th June 2012
