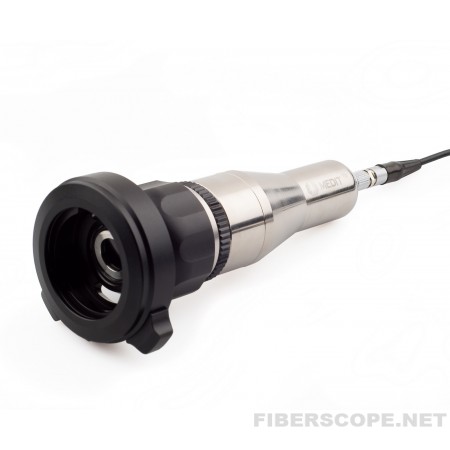

Medit's MTV Video endoscopy camera unit features a 1/4" Color
CCD video camera chip, which provides a resolution of 760*490
and over 470 TV lines, and an analog output (RCA) to connect
the camera unit directly to your TV monitor or USB capture
box. This camera also features a 28mm focus universal eyepiece
coupler to connect to all sorts of rigid endoscopes,
fiberscopes and borescopes.
Power for this unit is provided by a 12 volt power adapter.

• Image sensor: 1/4" COLOR CCD
• Picture elements: EIA//NTSC: 768 H x 494 V - CCIR/PAL:
752 H x 582 V
• Horizontal resolution: 470 TVL
• Minimun Illumination: 0 Lux rn
• Horizontal Sync. frequency: EIA//NTSC: 15.734 KHZ,
CCIR/PAL: 15.625 KHZ
• Vertical frequency : EIA//NTSC: 60 HZ, CCIR/PAL: 50 HZ
• Clock frequency: EIA//NTSC: 19.0699 MHZ - CCIR/PAL:
18.9375 MHZ
• Video output: 1Vp-p , 75 Ohms
• Gamma consumption: 0.45
• Power supply : DC12V
• Storage Temperature : -30°C ~ 60°C
• Operation Temperature : -10°C ~ 45°C
