Five Reasons Pros Will Value WeldSight Software
Posted:
Ultrasonic phased array (PA) is an advanced nondestructive testing (NDT) technique that has been used in industrial sectors for decades. Though it has been innovated, developed, and proven for a wide range of applications, the potential of phased array for the inspection of certain materials has yet to be fully exploited. Inspecting dissimilar welds, for example, is such a complex application that engineering an advanced phased array inspection can be time consuming. Not to mention the level of skill that is required to analyze and interpret the results. A recent development, however, aims to mitigate some of the complexity of applications such as dissimilar welds— WeldSight™ companion software for the FOCUS PX data acquisition unit.

Why WeldSight Software Is So Useful

For weld inspectors who use the FOCUS PX data acquisition unit to conduct phased array and time-of-flight diffraction (TOFD) inspections, WeldSight software helps optimize defect detection while reducing the amount of time required and, consequently, the overall costs.

The software can improve the efficiency of engineering advanced phased array inspections by facilitating each step of the inspection workflow, from scan plan creation to reporting, while taking into consideration repeatability requirements, code compliance, and unique weld characteristics.

Here are 5 features we know weld inspectors are going to appreciate:

1. Field-Proven Scan Plan Design Tool

To define the coverage of your phased array configuration, we incorporated Eclipse Scientific’s BeamTool into WeldSight software. Using BeamTool, inspectors can configure the appropriate beam sets for each probe and wedge combination to help ensure adequate coverage.

BeamTool has built-in options that consider:

Manufacturing codes
Probe and wedge parameters
Component piece, weld bevel, and calibration block characteristics
Linear, sectorial, linear spread, and zonal beam set configuration for PA, Dual Linear Array™ (DLA), and Dual Matrix Array™ (DMA) probes
Clad material layer inset, in line with the weld bevel
Dissimilar weld material
3D images of parts and probe sets
BeamTool built-in options

2. Optimized Calibration Tools Including Time-Corrected Gain (TCG)

Calibrating inspection equipment with WeldSight software is smooth and efficient thanks to convenient functionalities such as one-click acoustic wedge validation, one-click probe validation, and dynamic single-point sensitivity calibration, which stores a gain offset for each beam.

Clear visual indicators let you know when values are outside your tolerances.

The time-corrected gain (TCG) tool helps ensure that probe sensitivity is optimized. It’s possible to create multiple points simultaneously, individual points in succession, or combinations of the two, making calibration faster and more flexible.

3. Comprehensive Imaging of Your Inspected Part

WeldSight software’s drag-and-drop visual data displays include:

Corrected S-scan
Sweep and scrolling B-scan views
Amplitude C-scan views, including a weld gate option displaying only the weld and heat-affected zones (HAZ) of the piece overlay
Dynamic C-scan merge views, helping ease data interpretation while scanning
Strip charts for coupling and thickness monitoring
WeldSight software’s drag-and-drop visual data displays

4. Powerful Analysis Capabilities

When your inspection is complete, you can push your data analysis further with advanced functionalities including:

Volumetric merging
Soft gain
Gate and cursor readouts
TOFD advanced algorithms, including lateral sync and lateral wave removal

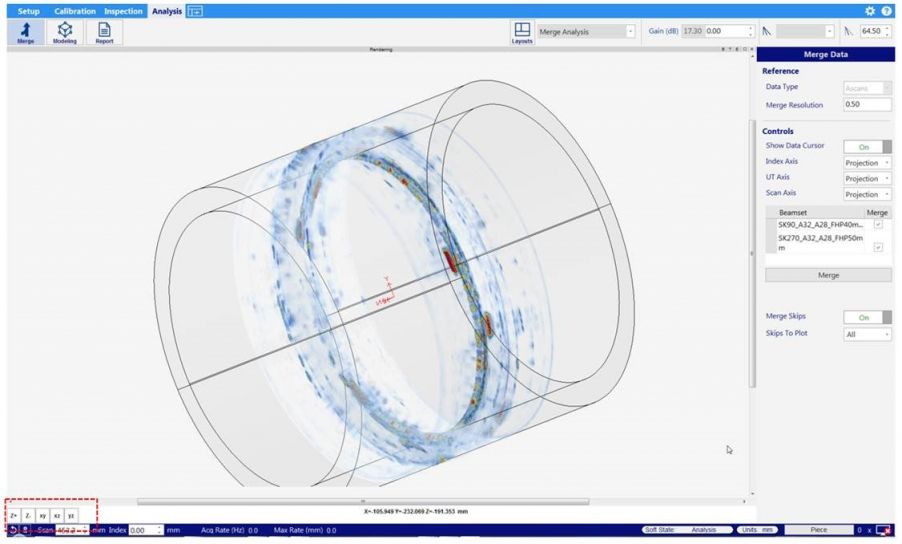

For piping applications, WeldSight software’s 3D imaging and polar views give you a thorough glimpse of the weld and the part from all the angles.

5. Supports Our Dedicated Weld Inspection Solution Hardware

WeldSight inspection and analysis software is designed for use with the FOCUS PX phased array data acquisition instrument.

WeldSight software also works with our phased array probes, including DMA, DLA, and dedicated weld series.
