Digitizing Pipe Manufacturing Workflow with DÜRR NDT
Posted:
Source: DÜRR NDT
PT. Cladtek, located on the island of Batam in Indonesia, is home to Cladtek’s flagship manufacturing facility and is the world’s largest supplier of weld overlay Corrosion Resistant Alloy (CRA) pipe and a leading global supplier of CRA mechanically lined pipe. The company itself was founded in 2003 and has around 800 employees at its Batam facility and has manufacturing locations in Brazil and Saudi Arabia.

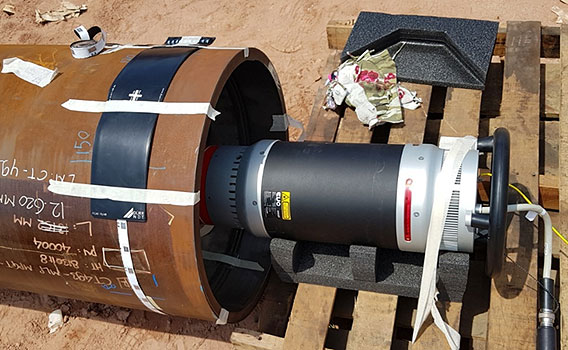

PT. Cladtek has been a user of DÜRR NDT’s HD-CR 35 Computed Radiography scanner since 2018 and primarily utilizes it with X-ray and Iridium-192 sources to perform inspection on weld overlay pipe ends and butt welds. The device is used on a weekly basis and to date has been used to acquire several thousand images with high-definition image plates. According to Mr. Hutagalung, NDT Supervisor: "the best thing about the scanner is its portability". The HD-CR 35 weighs just 17.5 kg and so can easily be moved to exactly where the inspection is being carried out – it can even be used without a PC as the scanned image can be viewed for basic correctness on the in-built screen.

Cladtek has 12 operators who were fully trained on-site by a DÜRR NDT expert on how to use both the scanner and D-Tect inspection software. As most of the inspection team is already quite experienced with conventional film radiography, the training required to use the DÜRR CR system is quite minimal. On the topic of film-based radiography Mr. Hutagalung commented: "the images from the HD-CR 35 are far better than conventional film radiography and the handling and workflow is so much easier."
