Aerial Robots Autonomously Measure the Thickness of Steel
Posted:
Source: Evident
Apellix™ is taking on corrosion control via aerial robotic systems. Also known as uncrewed aerial vehicles, UAVs, or drones, these aerial robots are software controlled for precision flight and automation.

Based out of Jacksonville, Florida, USA, the company is an Olympus OEM provider and has integrated our 38DL PLUS™ (38DLP™) ultrasonic thickness gauge on their aerial robotic system to autonomously measure paint, steel, and metal thickness. We chatted with Bob Dahlstrom, Apellix CEO, to learn more about the system and how it works.

Combining Nondestructive Testing with Aerial Robots

Apellix got its start with autonomous painting, coating, cleaning, and surface prep. Over time, the company recognized the need to measure the thickness of paint on industrial assets forged with steel and metal. This includes:

Infrastructure such as bridges and dams
Power generation assets for oil and gas
Manufacturing facilities
Marine vessels

The company expanded into using aerial robots with nondestructive testing (NDT) to autonomously measure paint thickness safely and reliably.

Safety is the highest priority in the oil and gas industry, and unplanned downtime is costly. A robust NDT program is important to help maintain the safety of people and the environment and to keep infrastructure assets operating efficiently. Ultrasonic testing is a widely accepted NDT method to measure remaining wall thickness and perform corrosion inspection. One of the major advantages of ultrasonic testing technology is that thickness measurements can quickly and easily be made from one side—with no need to cut parts.

A portable, rugged, and reliable ultrasonic thickness gauge was required to take ultrasonic thickness measurements and inspect for corrosion via the aerial robotic system. Apellix chose to equip Olympus’ 38DLP gauge for this purpose. "The 38DLP is the preferred industry standard, and we had received customer demand to use the Olympus thickness gauge device," says Bob.

How Do Ultrasonic Thickness Gauges Detect Corrosion?

Ultrasonic thickness gauges are often used to determine the thickness of a material where an inspector only has access to one side of the part, such as a pipe or an aboveground storage tank, where simple mechanical measurement is impossible or impractical due to size or access limitations.

Ultrasonic thickness gauges work by measuring the time of flight it takes for a sound pulse, generated by an ultrasonic transducer, to propagate in a test piece and reflect back from the opposite surface. Ultrasonic testing of corroded metal is usually done with dual element transducers. Because sound waves reflect from material boundaries, timing the echo from the far side of the test piece can be used to gauge its thickness, in the same way that radar or sonar measure distance.

Safety First—How Aerial Robots Work as a Safety Tool
The Apellix aerial robotics platform combines precision, reliability, and continuous performance of a robot with the flight capabilities of a drone for safe, cost-effective maintenance and testing of hard-to-reach places (including ATEX Zone 2 potentially hazardous environments).

Apellix aerial robotic systems

Inspecting at height is expensive, slow, and dangerous. The Apellix system eliminates the need for lifts, scaffolding, or rope work.

"Industrial inspections are necessary and critical but can be dangerous and expensive. Aerial inspection robotics and automation help organizations improve safety and reduce costs. We engineer safer industrial workplaces by programming drones to perform tasks in dangerous environments, with the worker safely out of harm’s way," explains Bob.

Key Components of Apellix Aerial Robotic Systems

Aerial drones work well at height but are not designed for repetitive tasks. Industrial robots can safely perform repetitive tasks for extended periods of time but cannot fly.

Apellix has created a patented aerial robotic system. It’s a hardened custom industrial drone equipped with:

Multi-modal sensor array system (incorporating sensor fusion and perception devices to make it capable of contact detection and localization)
Full onboard computer
Custom software to enable automatic flight to contact wall structures for measurements
The aircraft includes an articulating robotic arm with an end effector, a device at the end the arm that physically contacts the material being tested. The end effector contains the inspection measurement equipment, such as an ultrasonic thickness dual element transducer.

What Is Autonomous Flight?

Autonomous flight refers to aircraft that can fly independently. With autonomous flight on the Apellix aerial robotic system, the pilot (i.e., operator) positions the aircraft near its inspection target and selects Start on the user interface. An onboard computer takes over, performing flight control and testing before returning the aircraft to a station or safe zone to receive further instruction.

The 38DLP gauge inspects and performs measurements using its ultrasonic thickness technology. The aerial robotic system automatically dispenses couplant over its dual element probe tip prior to each contact measurement and before placing the probe against a wall surface. The user interface includes an option for the pilot to add additional couplant if needed.

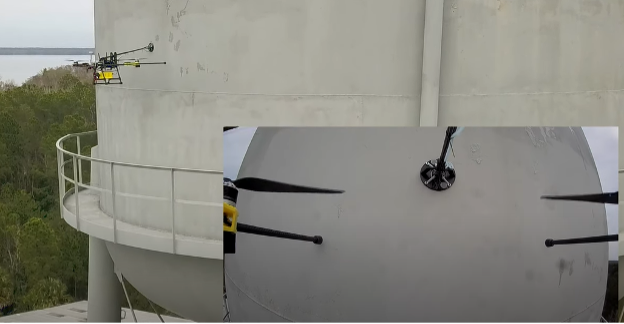

Ultrasonic testing using aerial robots

Aerial robot for ultrasonic thickness measurements
To perform measurements, the pilot navigates the aircraft to a desired inspection area and activates the autonomous flight. The onboard computer then programmatically flies the aircraft to the material surface and achieves contact for measurement readings.

Aerial robot for ultrasonic thickness measurements

Once sufficient readings are obtained, the aircraft backs away from the targeted wall and returns to a safe position awaiting navigation to a new area. Data can be reviewed in real time on the ground at the test site or securely in the cloud. The full data is also available as an Excel or CSV file for review and record keeping.

Apellix Opus X4 NDE systems can collect up to 200 spot measurements per hour. Designed to support NDE 4.0 practices, the systems can automatically feed the data into enterprise resource planning (ERP) systems, preventive maintenance checks and services (PMCS), integrity management systems (IMS), and the secure Apellix flight logs data and report generation system.

Aerial Robots Bring Advantages to Remote NDT Inspections

The mobility of aerial robots can offer significant benefits when deploying remote NDT inspections of large-scale assets. Apellix is uniquely situated to quickly take advantage of high value applications where aerial robots move workers from harm’s way, improve production or maintenance processes, reduce asset downtime, and dramatically reduce costs to the customer.

As stated in a news release, Apellix aims to "integrate existing technology into our robotics platform and make it work better, safer, faster, and with more robust results. We create economic value by improving on human performance, by eliminating or reducing the need for scaffolding, manlifts, or workers suspended by ropes, by turning high-value assets around quicker, and by bringing science to the worksite through our introduction of computer control and data collection. In certain applications, such as testing a 100-meter-tall refinery flare stack, our aircraft can save $5 or 10 million in downtime, and up to a million dollars in scaffolding costs on a single project."

As industries look to make inspections cost-effective, easier to perform, and more thorough, the adoption of robotics continues to grow rapidly. In fact, the inspection robots market is expected to reach $13,942.5 million by 2030. Precision-controlled aerial robots can help thoroughly detect and predict corrosion, leaks, and defects in hard-to-reach places while maintaining operator safety.
