Nonlinear Resonance Testing for 3D Printing
Source: Theta NDT
The latest work to put nonlinear resonance NDT under the microscope is a collaborative project between Theta Technologies and the French National Metrology Institute (NMI), Laboratoire National de Métrologie et d’Essais (LNE) whose primary objective was to provide a comprehensive comparison of different non-destructive testing techniques to the ISO/ASTM standardisation joint group JG59 standards group for NDT for AM parts.

RD1-TT would be tasked with testing 3D-printed metal star artefacts, produced by LNE at the National Institute of Standard and Technologies (NIST) in USA, in order to determine the level of nonlinearity within the samples. LNE-NIST set Theta Technologies the challenge to detect flaws that may be present within the samples using nonlinear resonance NDT.

As part of the study, Theta Technologies was provided with a small sample of star artefacts (seen above), the geometry of which was used to help develop the ISO/ASTM industry standard as a test geometry for non-destructive testing. The samples, measuring approximately 60mm x 45mm were additively manufactured using laser powder bed fusion in Cobalt-Chromium and had previously been subjected to an array of conventional non-destructive testing methods.

Whole-body inspection
Resonant Ultrasound Spectroscopy (RUS)
Process Compensated Resonance testing (PCRT)
Selective inspection methods
Ultrasonic Waves
Conventional Ultrasonic Waves (CUT)
Phased Array Ultrasonic Testing (PAUT)
Other inspection methods
X-ray Computed Tomography using Synchrotron Radiation (SRXCT)

These non-destructive tests offered varying levels of success when faced with testing the additive-manufactured star artefacts. Despite some clear benefits such as an ability to identify the type and location of the defects, fewer size restrictions and real-time imaging, selective inspection methods and X-ray CT scanning have proved notoriously unsuitable when testing additive-manufactured samples. Lengthy part setup requirements, a restriction on geometry, ineffectiveness for volume production, a heightened level of expertise requirements, and restrictions in surface roughness have all contributed to the misfortunes of existing NDT methods in the provision of reliable results for metal AM parts.

Unlike the other techniques, nonlinear resonance takes a direct measurement of the nonlinearity present in individual components and eradicates the need for reference parts. Judgements can be made on a very small number of samples as an ideal, flaw-free part would exhibit zero nonlinearity.

Nonlinear resonance: The Test

The tests of the star artefacts were carried out using RD1-TT, which makes use of an excitation source and laser measurement tool. Nonlinear resonance results are summarised as a ‘Damage Index’ metric, which helps identify the severity of the flaw present within samples. Upon provision of the samples, visible cracks were observed on the surface of the star artefact samples labelled NIST3 and NIST4, but none were visible on the star artefact sample labelled NIST2.

This meant that the visibly damaged samples should exhibit signs of nonlinearity in the response during the test. A key component of a nonlinear resonance non-destructive test is reproducibility measurements, which validates the results over multiple tests of the same component. Nonlinear results are then plotted on the damage index for each of the reproducibility tests. As the results demonstrate (Fig B), there is clear differentiation in the damage index for each of the samples. Those samples that had previously been identified as flawed from a combination of visual inspection and the previous non-destructive tests expectedly registered higher damage index results. Sample NIST2, which had no obvious flaws on the surface, registered the lowest and did not reveal any significant flaws present that would prove detrimental to the integrity of the component.

Although the primary objective of a nonlinear resonance test is to identify whether a component is defective, additional linear data is also obtained as part of the procedure. Linear metrics are associated with differences in material properties and dimensions.

Samples can be ranked by their dimensions and that information is then passed on to the customer. This measurement proves particularly beneficial for manufacturers who have limited tolerance for changes in the size and shape of their products, or indeed those who must ensure that each of their manufactured parts share the same material properties. The complimentary linear metrics obtained as part of the study of the star artefact samples clearly differentiate between the samples, with the artefact labelled NIST 4 showing considerably different linear measurements to both NIST 2 and 3.

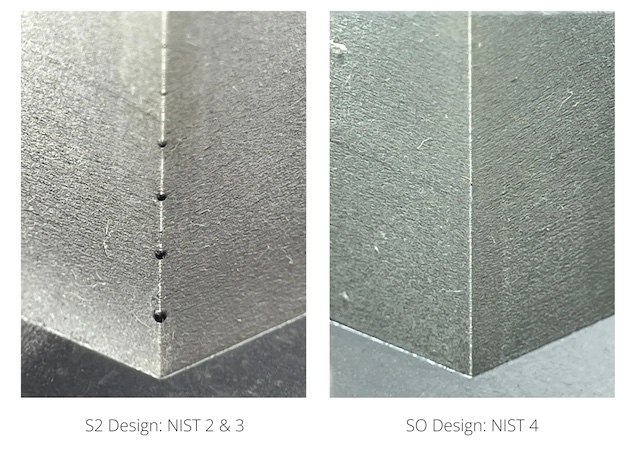

The difference in the linear results received as part of this study is directly attributed to the manufacturing process of the artefacts. NIST2 and 3 were manufactured with a number of intentional CAD defects (Fig C) in the form of cylindrical voids, whereas star artefact sample NIST4 was produced with no planned defects. The clear difference in linear results (Fig D) immediately allows for the identification of samples that share similar material properties.

The system developed by Theta Technologies is very interesting as it allows manufacturers to perform linear and nonlinear resonance tests.

The Conclusion

Upon provision of the samples, it was immediately identified that two of the three samples, NIST3 and NIST4 exhibited visible cracks. A nonlinear resonance non-destructive test of these components should be able to easily identify these defects with a nonlinear response in the signal.

The remaining sample, NIST2, which had no visible cracks or defects would subsequently register a low damage index score should the internal construction of the sample remain flaw-free.

As expected, a series of nonlinear resonance tests clearly demonstrated differentiation between the two visibly cracked samples, and the one that was crack-free. Within the context of a production workflow, these flaws could have been identified immediately after printing using RD1-TT, meaning that those parts could have been removed from the manufacturing process prior to post-processing procedures being undertaken, saving time, cost and resources in the process. The additional complimentary linear metric data obtained as a by-product of the nonlinear resonance test also highlights visible differentiation between the parts, which is normally due to the difference in material properties of the samples. On this occasion, the linear metrics reveal a differentiation between samples that exhibited planned CAD defects NIST2 and NIST3, and that with no planned defects, NIST4.

When asked to comment on the success of the study, Researcher in metrology for Additive Manufacturing at LNE, Dr/Habil. Anne- Françoise Obaton stated that "The system developed by Theta Technologies is very interesting as it enables manufacturers to perform linear and nonlinear resonance tests that are complimentary. The cracks, which display typical nonlinear behaviour, can be detected with the nonlinear module, whereas cavities full of powder, which don’t have a nonlinear behaviour, can be detected with the linear module of Theta Technologies’ system".

Theta Technologies’ Research and development Manager, Dr Daniel Rodriguez Sanmartin, who helped coordinate the project added "This case study demonstrates detection of cracks using nonlinear resonance. For below surface contact cracks, dense materials, and complex geometries, these may not be detected by other NDT methods. The speed of nonlinear resonance enables a viable AM workflow with 100% testing and identification of deviations in material properties or dimensions at every post-processing step."

It goes without saying that if all defects were as obvious as the cracks exhibited on the surface of the 3D-printed star artefacts supplied by LNE-NIST in this study, there would be very little need for NDT; however, what Theta Technologies have been able to demonstrate with this, and indeed the other studies, is that their unique nonlinear resonance technique is more than capable of identifying flaws, regardless of their location within additive manufactured components.

What next for Metal AM?

The unquestionable potential of additive manufacturing is yet to be fully unlocked, largely as a result of ineffective NDT options with the ability to cope with the technique’s incredible flexibility. This has often confined metal AM components to mere prototypes rather than allowing them to flourish as end-user parts. If manufacturers of safety-critical components are to make that desired transition from prototyping to end-user part production, an effective non-destructive testing solution is paramount.

Nonlinear resonance offers additive manufacturers that highly sought-after solution, with a rapid, cost-effective NDT technique capable of delivering reliable results when faced with the increasingly complex components inherent of 3D-printing. RD1-TT not only promises to provide the NDT solution capable of unlocking metal additive manufacturing’s overwhelming potential, but also to speed up the acceptance of additively manufactured parts to wider industries.
RD1-TT, Theta Technologies’ first commercially available product is available now.
To find out more about this revolutionary machine, or book a demonstration to witness the impressive capabilities yourself, you can contact a member of the team by emailing info@thetandt.com
