Why Switch to Digital Radiography
Posted: 2026-2-1
Source:
Baker Hughes
In weld inspection, image quality is the foundation of accurate interpretation. Over the last decade, industrial radiography has seen major advancements in image resolution, radiographic contrast, and defect indication visibility. These improvements are not just technical - they directly impact safety, compliance, and operational efficiency.
Resolution: From Grain to Pixels
Historically, film radiography was considered the benchmark for resolution because of its fine grain structure. However, resolution in film depends on film type and exposure conditions, which can introduce variability.
Direct radiography (DR) and computed radiography (CR) have introduced pixel-based resolution, which is:
Quantifiable and repeatable: Pixel pitch (e.g., 35 μm or 75 μm) defines the smallest detail that can be captured.
Consistent across inspections, reducing variability caused by processing.
For example, Waygate Technologies’ CRxVision achieves 35 μm pixel pitch and an SRb (sharpness) of 40 μm, meeting ISO 17636-2 Class A and B standards for weld inspection. This level of precision ensures that even the smallest discontinuities are detectable.
Seeing the Full Spectrum: Unlocking Contrast and Dynamic Range
Radiographic contrast determines how well differences in material densities and thicknesses are distinguished. Film has a fixed contrast curve, which can limit visibility in areas with extreme thickness variations.
Digital systems offer:
Wider dynamic range, capturing both high- and low-density regions in a single exposure.
Adjustable image-contrast and -brightness through software, allowing inspectors to enhance specific areas without re-exposure.
This flexibility is critical for complex components like turbine blades or thick welds, where density variations are significant.
Cutting Through the Noise: Achieving Crystal-Clear Clarity
Noise can obscure small flaws, especially in thick or complex components. Modern digital detectors, combined with advanced algorithms, significantly reduce image noise while preserving edge sharpness. This results in:
Cleaner images with higher signal-to-noise ratio (SNR).
Improved visibility of fine details (e.g. cracks and inclusions), even in challenging geometries.
Waygate Technologies’ DXR detectors like the DXR Flex 1025 & 1043 are designed to optimize this balance, delivering high-resolution images with minimal image noise levels for both weld inspection and corrosion monitoring.
Image Processing: One Click to Perfection
Hardware improvements alone are not enough. The real leap forward comes from intelligent image processing:
Algorithms can merge multiple density ranges into a single optimized image.
Edge enhancement and filtering techniques improve defect detectability without altering raw data, maintaining full data integrity, and therefore ensuring compliance.

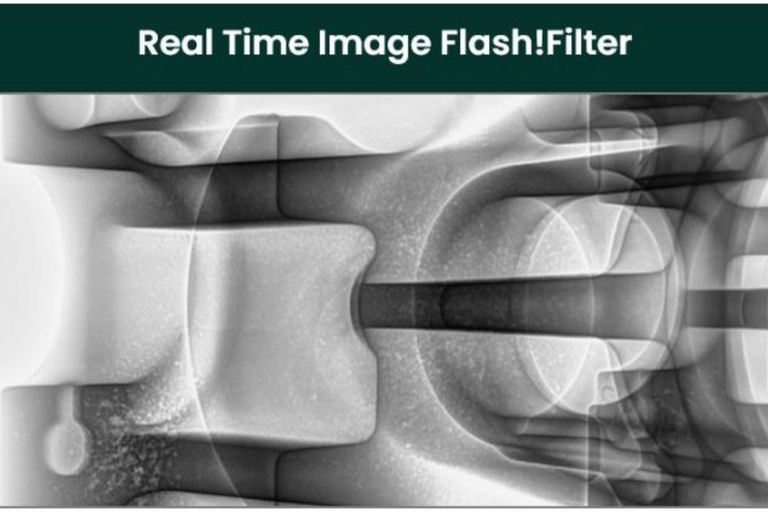

Waygate Technologies’ Flash! software is a prime example. After the image is captured and displayed on the computer, a single click on Flash! transforms it into an exceptionally clear image. Behind that click, the software performs 50 billion calculations per image, combining high- and low-density details into one optimized view. The result? Sharper edges, clearer contrast, and improved visibility of subtle defects indications - all without compromising data integrity.
Enhance Image Quality and Analysis
Beyond speed, digital radiography offers superior image quality and advanced analytical capabilities. Features such as:
Portable and Stationary Systems: Offer flexibility whether in the field or a lab, without compromising image clarity.
High Dynamic Range and Adjustable Contrast: Allow inspectors to enhance images post capture for clearer defect clarity.
This leads to more accurate diagnoses and a deeper understanding of material integrity.
Why Image Quality Defines Inspection Confidence
Better image quality translates to:
Increased Probability of Detection (PoD) for critical components.
Reduced interpretation errors, leading to safer operations.
Compliance with the most demanding standards in aerospace, energy, and manufacturing.
The Clear Path Forward
The evolution from film to digital radiography in weld inspection is not just about convenience; it’s about seeing more, seeing better, and making better decisions. With solutions like CRxVision, DXR detectors, and Flash!, Waygate Technologies is at the forefront of delivering the sharpest, clearest images in the industry.
Next step: How do you measure image quality?
Understanding image quality improvements is just the beginning. To truly master radiographic performance, you need to know how to measure it.
