SOLO PRO+ ExZ1 Explosion-Proof Pipe Camera Now Features Pan & Tilt
Posted: 2026-3-6
By:
FIBERSCOPE
Source:
www.fiberscope.net
WINNIPEG, MB - March 6, 2026: FIBERSCOPE is glad to offer the SOLO PRO+ ExZ1 explosion-proof pipe inspection camera with now available pan & tilt camera head — enabling full circumferential pipe wall inspection from a push camera system. Certified to ATEX Zone 1, IECEx, and UL Class I Division 1, the SOLO PRO+ ExZ1 operates safely in potentially explosive atmospheres where no conventional camera may be used.
No Crawler Needed — Pan & Tilt Does the Job
Until now, inspecting the full circumference of a pipe wall in a classified hazardous zone required a steerable robotic crawler — heavier, more complex, and significantly more expensive to deploy. The pan & tilt head on the SOLO PRO+ ExZ1 changes that. Operators can now rotate and angle the explosion-proof camera head directly from the push rod system, covering lateral defects, branch connections, and the full pipe wall without additional equipment.
For industries operating in ATEX Zone 1 environments — oil and gas, petrochemical, mining, wastewater, and power generation — this means faster deployment, lower operational cost, and no compromise on explosion-proof certification.

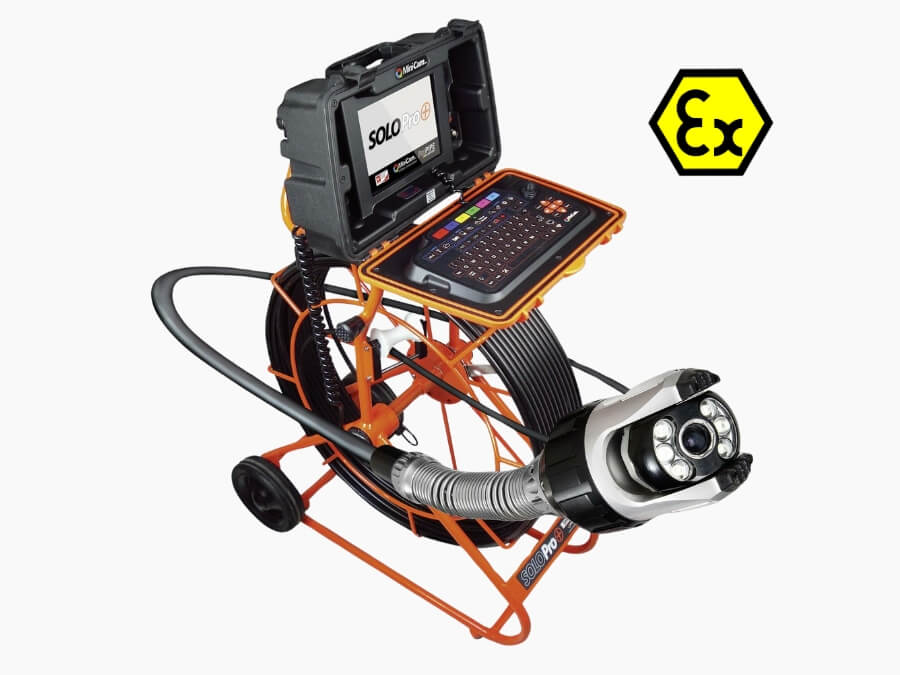

System Overview
Pan & Tilt Camera Head: Nitrogen-pressurizable, waterproof to 1 bar, ATEX Zone 1 / IECEx certified. Replaces the need for a motorized crawler in most lateral inspection scenarios. Optional precision sensors for distance, diameter, and defect measurement.
CCU210-ExZ1 Control Unit: Equipped with a dedicated ATEX Override Key that instantly cuts power upon any safety anomaly — a hard fail-safe required for Zone 1 operation.
Steel-Frame Cable Reel: Sealed push rods up to 100 m (330 ft). Inspects pipes from 2 inches in diameter. Built for repeated field deployment in harsh conditions.
Certifications
The SOLO PRO+ ExZ1 is explosion-proof certified to ATEX Zone 1 (EU), IECEx (International), and UL Class I Division 1 (NA) — the highest hazardous-location classification for flammable gas and vapor environments. Equipment certified at this level is fully compliant in any Zone 2 or Division 2 area where gas group and temperature class requirements are met.
About FIBERSCOPE
FIBERSCOPE has been supplying industrial inspection solutions to clients across North America and internationally for over 20 years. The company offers a thoroughly selected range of borescopes, pipe cameras, and inspection systems — with expert technical consultation to match the right tool to each application. The SOLO PRO+ ExZ1 is available now through FIBERSCOPE.
Media & Sales Inquiries
FIBERSCOPE | MEDIT Inc. | Strahl LLC
Toll-free: 1-877-613-2210
