Leading oil & gas companies have continued to modernize their field inspection workflows across multiple production and midstream sites. Improving safety, reducing manual inspection time, and enabling remote monitoring of critical infrastructure using the DJI Dock 3 paired with the Matrice 4D Series.

From pipeline corridors to active production facilities, customer deployments have revealed best practices for how drone-in-a-box automation can transform operations in one of the world's most demanding industries.

Why Automation Matters for Oil & Gas Operations

Traditionally, inspections in oil & gas fields require crews to drive long distances, often in harsh weather and over difficult terrain, to visually check equipment and transfer lines. These manual patrols are time consuming, carry safety risks, and offer limited situational awareness.

The DJI Dock solution introduced a new way of working involving automation, and repeatable drone missions that capture thermal and visual data around the clock. By deploying multiple Docks across production networks, miles driven have been reduced, inspection consistency improved, and anomalies have been detected before they became costly incidents.

Setting Up the System

Commonly the Dock 3 is installed on a reinforced concrete pad with a dedicated 120 V AC (10 A) power source and satellite internet for connectivity. This setup allowed remote operation in isolated locations where traditional network access is unavailable. It is recommended to elevate the dock to minimize dust.

Key installation items and best practices to consider:

• Site Selection and Placement: Choose sites with clear flight paths to nearby pipelines and production pads. Position Docks centrally and closer to inspection targets to reduce transit time, maximize coverage per flight, and ensure efficient operations.
• Perform RF and site surveys to optimize Dock and D-RTK 3 relay station placement.
• Data Storage and Security: Use on-premise servers or DJI's FlightHub 2 AIO deployment if cloud storage isn't possible. Implement hybrid workflows where needed.
• Integrating FlightHub 2 and ESRI GIS overlays to align inspection routes.
• Maintenance for Harsh Environments: Plan regular cleaning, seal checks, and calibration protocols.

These steps ensure that each Dock can operate automatically while meeting strict cybersecurity and maintenance standards.

Route Planning in FlightHub 2: Building Reliable, Repeatable Missions

Step 1: Importing GIS Layers into Flighthub 2

Oil and Gas companies will import GIS data into Flighthub 2 for situational awareness and mission planning. Data includes pipelines, wells, facilities, tanks, transport networks, and more. This is typically imported via KML or KMZ files.

Step 2: Create a Linear or Area Mission Aligned to the Asset

Operators draw flight paths aligned with infrastructure:

• Linear Missions: Follow pipelines and transfer lines for consistent inspection.
• Area Missions: Cover facilities and pads with automated capture patterns.
• Waypoint missions and panoramas can also be used.

Step 3: Mission Settings

• Thermal imaging for leak detection
• RGB for vegetation loss
• Combined sensors for facilities
• Configure altitude, gimbal angle, intervals, overlap, and return-to-home

Step 4: Convert Into Repeatable Missions

Missions are saved as templates in the Task Plan Library, enabling scheduled or on-demand execution.

How It Works: From Alarm to Action

• Setup Phase: Install Dock and load missions
• Automated Flight: Drone launches via schedule or trigger
• Data Processing: Imagery stored and analyzed (often with AI)
• Decision and Dispatch: Teams respond only when needed

This workflow reduces hours of manual work to ~15 minutes.

Enhancing Inspections with AI Integrations

Operators are integrating third-party AI platforms for predictive maintenance and anomaly detection.

• Creation of digital twins
• Detection of corrosion, leaks, and structural issues
• Prioritization of issues by severity

Observed Benefits and Considerations

• Reduced labor hours
• Improved detection accuracy
• Earlier intervention in high-risk environments

How the Integration Works

• Data Capture: Automated flights collect imagery
• Upload and Analysis: AI processes data
• Actionable Insights: Outputs trigger work orders

Applications Across the Energy Field

Pipeline Monitoring

• Monitor erosion, vegetation loss, leaks
• Autonomous flights every two hours

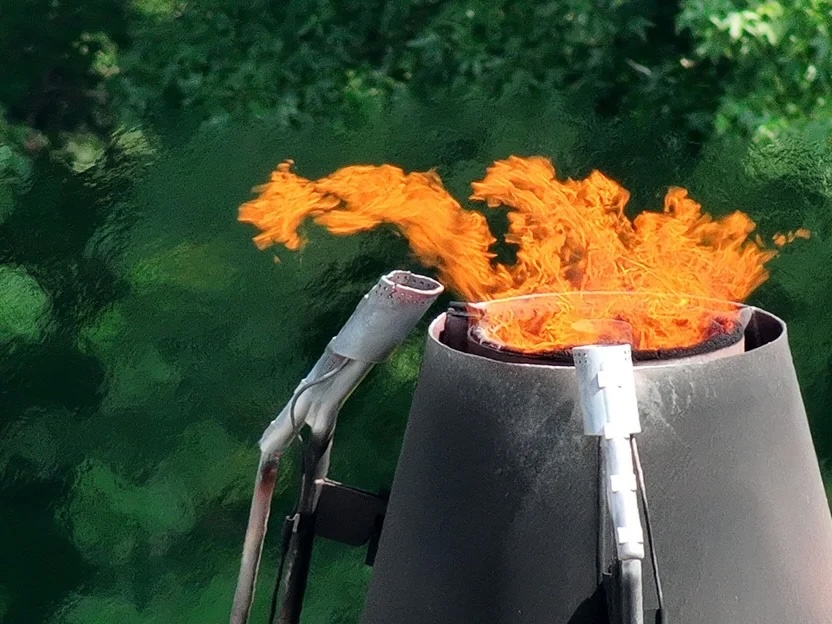

Facility and Flare Stack Inspections

• Detect gas emissions and equipment issues
• Reduce worker exposure to hazards

Perimeter and Environmental Checks

• Detect unauthorized vehicles or wildlife
• Identify environmental disturbances

Benefits & Looking Ahead

Potential Benefits

• Safety: Reduced exposure to hazards
• Efficiency: Less manual labor, faster response
• Data Quality: Consistent imagery improves AI accuracy
• Scalability: Expand across large production networks

Automation and data integration are setting new standards for industrial monitoring.

Looking Ahead

Companies are leveraging BVLOS waivers to enable remote operations and reduce on-site presence.

• Typical waivers allow 200–250 ft shielded operations
• FAA Part 108 aims to standardize BVLOS approvals
• Multi-Dock management enables one operator to oversee multiple systems
• Future integration with digital twins and asset systems

Automation, data integration, and reliability combine to make DJI Dock a practical solution for large-scale industrial monitoring.
