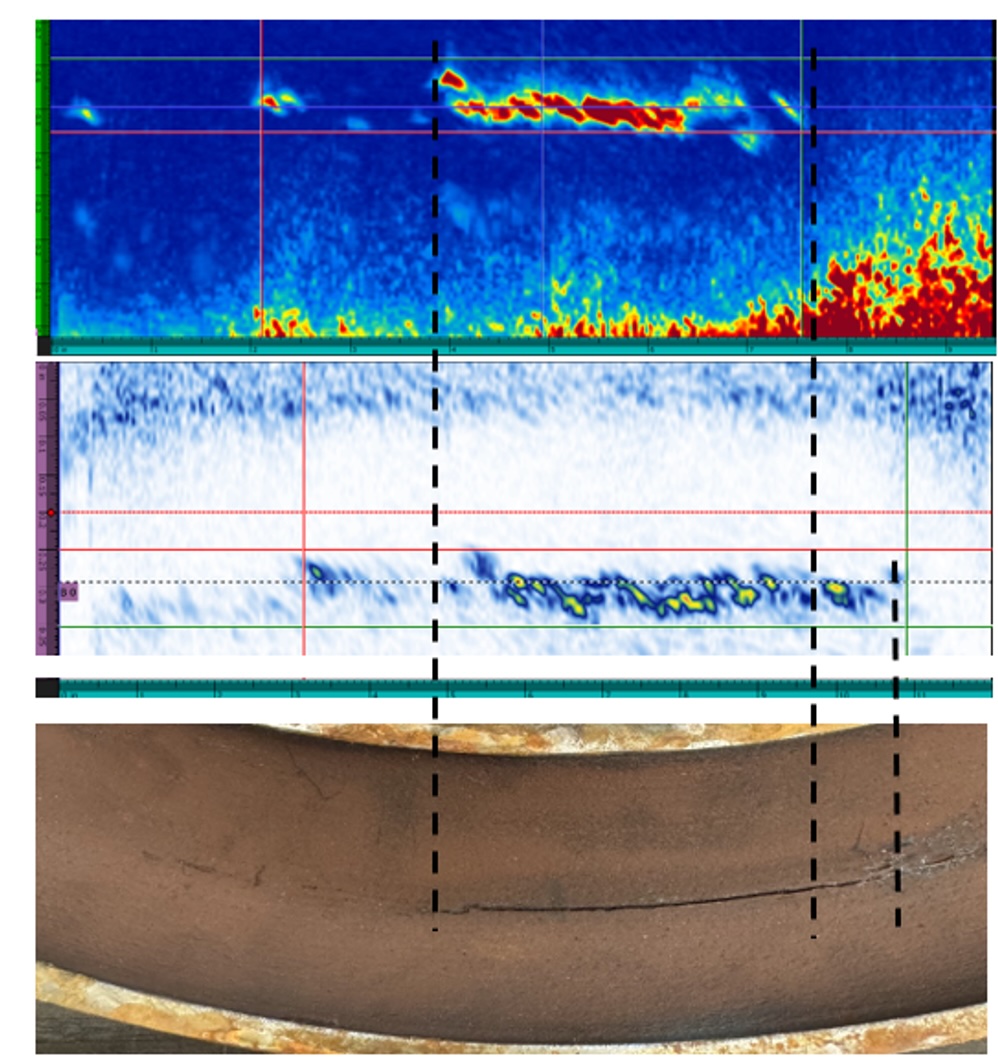

This article examines the practical application of PAUT and TFM for boiler tube weld inspection, highlighting their advantages for detecting and characterizing common service-related and fabrication defects such as lack of fusion, incomplete penetration, porosity, and cracking. PAUT enables rapid sectorial scanning and precise beam steering, allowing comprehensive coverage of the weld volume and heat-affected zone with a single probe setup. When combined with TFM imaging, inspectors gain high-resolution reconstruction of ultrasonic data, producing detailed images that improve flaw sizing accuracy and reduce interpretation uncertainty.
The implementation of these technologies in accordance with ASME Boiler and Pressure Vessel Code Section V ultrasonic examination requirements provides a robust inspection framework for both fabrication and in-service assessment of boiler tubes. Case studies demonstrate how PAUT and TFM improve probability of detection (POD), reduce false calls, and enhance inspection reliability compared with conventional ultrasonic testing and radiography, particularly in small-diameter tubing and limited access environments.
Under the ASME Boiler and Pressure Vessel Code (BPVC) Section I – Rules for Construction of Power Boilers, boiler tubes are pressure-retaining tubular components that form part of the boiler heating surface and contain water, steam, or a water–steam mixture while exposed to heat from combustion gases. These tubes are considered boiler pressure parts because they operate under pressure and contribute directly to steam generation. Typical boiler tube applications include waterwall tubes, generating tubes, superheater tubes, reheater tubes, and economizer tubes. The design, fabrication, and inspection of these tubes are governed primarily by ASME BPVC Section I, with supporting requirements from Section II for materials, Section V for nondestructive examination (NDE), and Section IX for welding procedure and welder qualification.
Boiler tubes are typically manufactured from materials specified in ASME Section II, with common grades including SA-192 and SA-210 carbon steel tubes, as well as SA-213 alloy and stainless steel tubes such as T11, T22, T91, and TP304/TP316 for higher temperature service. Welding of boiler tubes must be performed using procedures qualified in accordance with ASME Section IX, which defines essential variables for welding procedure specifications (WPS) and welder performance qualifications. Typical welding processes used in boiler tube fabrication and repair include gas tungsten arc welding (GTAW/TIG) for root passes, followed by shielded metal arc welding (SMAW) or GTAW for fill and cap passes, although automated orbital GTAW may also be used for small-diameter tubing. Weld preparation generally involves full-penetration bevel joints for tube butt welds and carefully controlled fit-up to ensure proper weld penetration and integrity.
