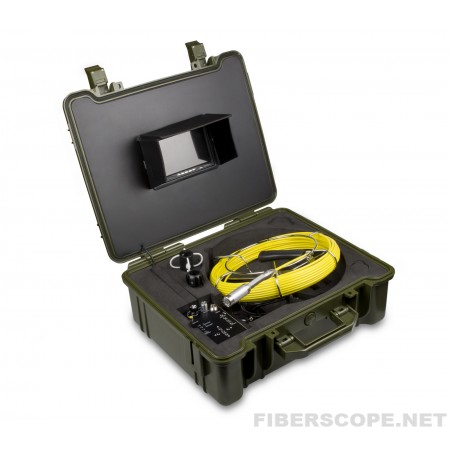

Viper S Portable Push Camera
Company: Medit Inc
Contact: salesteam@meditinc.com
Address1: 96 Sherbrook St.
City: Winnipeg
State: Manitoba
Country: Canada
Phone: 18776132210
The viper S portable push camera is an economical choice in
portable inspection equipment, as it is ideal for a wide
range of applications such as inspecting ducts, pipes,
wells, inside wall cavities during contraction or building
inspections, sewers, etc.
The 512Hz Sonde built into the camera head of the Viper S
allows the head of the probe to be tracked underground, in
walls, etc with the optional locator.
The camera head has a high res CCD camera chip for the
capture of crisp, bright, clear color videos and images. The
sapphire lens is designed to resist scratching, and 12 LED
lights are built into the camera head to ensure adequate
illumination in all situations. The flexible spring joint
located behind the end allows the Viper to navigate corners.
The 7" LCD monitor displays a crisp color picture of the
area being inspected. The videos and images are saved
directly onto a SB memory card or an external hard drive in
compressed AVI format. This display and the controls are all
located in a portable waterproof plastic case for easy
Insertion Probe Length: 35M (114.9') Camera Head Diameter: 23mm (1.0") Color CCD camera with sapphire glass lens No articulation Fiberglass cable 60 Field of View (FOV) 0 Direction of view (DOV) Waterproof design for portable use Illumination: 12 white LEDs Special point touch connector to the camera Waterproof: IP68 Image Hub 7 Color LCD monitor with Video output, file playback Monitor Picture Resolution: 320 (TV Lines) SD card slot to capture video/images, also USB for a flash/hard drive Recording format AVI/JPEG Power adaptor: 110~240VAC, 12VDC/1800mA Rechargeable battery for portable use up to 3 hours Li-ion battery box (4000mAh) Operating temperature - 20F~ 120F (- 28C~ 50C) Dimensions: Plastic Carrying Box 48cm x 39cm x 19.5cm Total weight: 7.5 kg
