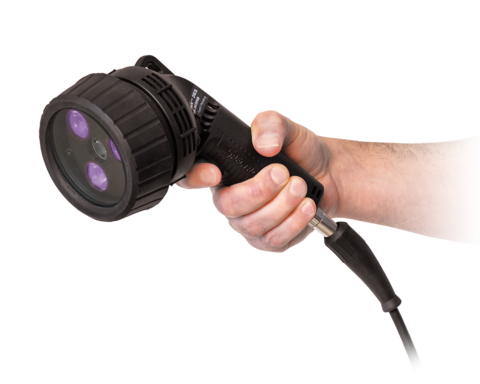

TRITAN™ 365 HC LED-UV-A Inspection Lamp
Company: Spectroline
Address1: 956 Brush Hollow Road
Address2: 5163334840
City: Westbury
State: NY
Country: USA
Phone: 5163334840
UV-A INSPECTION LAMP
Finally, a HIGH INTENSITY, ASTM COMPLIANT, LED-UV-A inspection lamp with a WIDE beam coverage area and a uniform beam pattern.
Certified to meet ASTM E3022 Standards
Nominal steady-state UV-A intensity of 7,000 µW/cm2 at 15 inches (38 cm). Large 6 inch (15 cm) diameter coverage area at 15 inches (38 cm), with a minimum UV-A intensity of 1,200 µW/cm2. Low visible light emission—less than 0.5 foot-candle (5 lux). Long-lasting UV-A lenses reduce the rate of solarization. Thermal cut-off circuitry prevents lamp from going out of compliance when internal temperature exceeds specifications. Certificate of conformance and full serialized validation report for both output and wavelength measurements as defined by ASTM E3022 supplied with each lamp.
Fully compliant to ASTM E3022 for LED UV-A lamps. Faceplate with integral blacklight filters reduce output of wavelengths longer than 400 nm. White light LED allows for scanning of surface flaws or illuminating dark work spaces. Grip-mounted, three-way rocker switch (white light/off/UV) for easy control of light sources. Built-in fans keep LEDs cool to maintain optimum light output during extended use. Choice of standard 8 foot (2.4 m) or extra-long 20 foot (6.1 m) heavy-duty power cord with AC plug and rubber boot. Meets ASTM standard for characterization and emission requirements of LED UV-A lamps. UV-absorbing spectacles and soft carrying case included.
