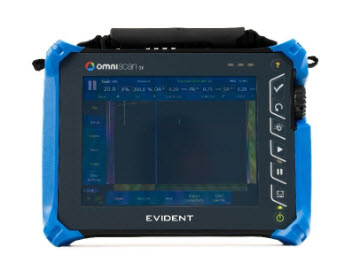

OmniScan® SX Ultrasonic Flaw Detector
Company: Olympus IMS
Olympus’ OmniScan SX flaw detector features a streamlined software interface displayed on an 8.4-in. (21.3 cm) touch screen. The OmniScan SX flaw detector comes in two models: the SX PA and SX UT. The SX PA is a 16:64PR phased array unit which, like the UT-only SX UT, is equipped with a conventional UT channel for pulse-echo, pitch-catch, or time-of-flight diffraction (TOFD) inspection. Compared to the OmniScan MX2 flaw detector, the SX model is 33% lighter and 50% smaller, offering excellent portability.

The flaw detector’s touch screen features a full-screen mode option that maximizes visibility, essentially converting many menu functions into easy touch-screen operations. The intuitive interface provides smooth menu selection, zooming, gate adjustments, cursor movements, and text and value input. These features, along with easy-to-follow setup and calibration Wizards, a rapid refresh rate for both the S-scan and A-scan displays, and a fast pulse repetition frequency (PRF), make the OmniScan SX flaw detector an efficient inspection tool.
