MidBeam 2.0 Zeus UV Inspection Light in compliance with ASTM E3022-15
Company: Labino AB
Contact: Marios Athanasiadis
Address1: Fagelsangsvagen 16
City: Vallentuna 18642
Country: Sweden
Phone: + 46 883 90 70

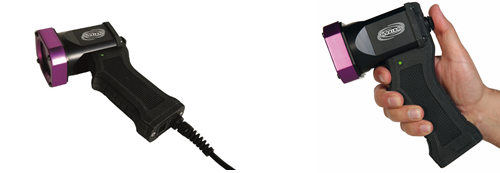

MidBeam 2.0 Zeus is an extremely robust hand held lamp especially designed for use by heavy industries with very difficult operating environments. The light is compact in size, with four LEDs in a housing diameter of just 3.15 inches (8 cm)! This product is available with our eight distributors located in the US and with 80 more distributors worldwide.

Each light consists of 4 LEDs offering an extremely even beam. The switch located at the back of the head provides instant power. It is easy for the battery version to switch batteries. Four batteries are provided and two are needed to operate. The location of the batteries (inside pistol handle) makes the ergonomics of the unit stable. The battery version has a camera mount and can mount on a tripod that can be supplied by Labino. The mains version has a squared pin hole that can mount on a flexible arm that can also be supplied by Labino. Choose your customized cable length on a mains unit.

UNIQUE FEATURES OF MIDBEAM 2.0:

A. IP68 Waterproof classification: Solids and liquids that often find their way into a light causing UV LEDs to burn cannot penetrate a MidBeam 2.0 unit.

B. Battery indicator: Four colors, green, yellow, orange and red signal the user when the batteries are over 75%, 50-75%, 25-50% and below 25% charged respectively. With less than 10% left the red signal starts flashing.

C. Operates while charging batteries: The battery version can operate like mains while charging the batteries via a connector at the back of the head.


The MidBeam 2.0 is available in two different models, as MidBeam 2.0 Zeus and MidBeam 2.0 Hermes. Both models are in compliance with ASTM E3022-15.

MIDBEAM 2.0 ZEUS: The MidBeam 2.0 Zeus generates an intensity of approximately 5 000 mW/cm2 (at 15 inches) and is equipped with a white light LED for after inspection. It is in compliance with E3022-15.
Labino AB (www.labino.com) is a Swedish-American, family owned company dedicated to the development and manufacture of UV inspection lamps since 1994. Since its inception, Labino AB has been committed to high standards of quality in the design and manufacture of new innovative products, helping NDT professionals worldwide to make the world a safer place. Labino has a wide portfolio of stationery, handheld, headlight UV products that are in compliance with ASTM E-3022, E-1417, E1444, E2297 as well as with ISO 3059. Labino also has available customized products that comply with engineering specifications of renowned manufacturers (PRIMES) such as Rolls Royce i.e. RRES 90061, Boeing, Pratt & Whitney etc. For a live demonstration of our products and more information of our compliance with the various standards please contact one of our distributors at www.labino.com/distributors.
