EPOCH 6LT
Company: Evident

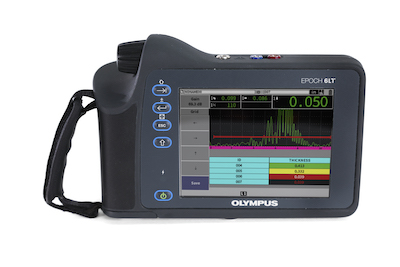

The EPOCH 6LT portable ultrasonic flaw detector is optimized for one-handed operation and delivers excellent performance in rope access and high-portability applications. Lightweight with an ergonomic design, the instrument fits securely in a user’s hand or can be strapped to their leg with the optional rope access accessory kit.

Portable and easy to use, the EPOCH 6LT flaw detector is an ergonomic, rugged instrument that delivers user comfort and more uptime. The EPOCH 6LT flaw detector’s workflow is simple and straightforward, and inspection information is clear and readable on the device’s large VGA transflective display. Despite the instrument’s small size, it has the features and functions to meet the requirements of nearly any conventional ultrasonic inspection application. Other features include:

• Weighs just 1.95 pounds (890 g) with a grip-oriented weight distribution for one-handed operation with minimal wrist fatigue
• Rotary knob and simple button design make it easy to use, even when wearing gloves
• Engineered to IP65/67 and drop tested
• Clear, bright screen for readable A-scans in any light
• Offers all the core functionality of the EPOCH 650 flaw detector in a small, portable instrument
• Meets the requirements of ISO 22232-1
• Optional corrosion software with center-pin transducer ID
• Optional Wireless LAN connectivity
